Habotest HT616 utilizes the principles of electromagnetic induction and eddy current effect to measure the thickness of electroplated layers and coatings on metal surfaces. The product is characterized by high accuracy, stable performance, reliablility, and non-destructive measurement.

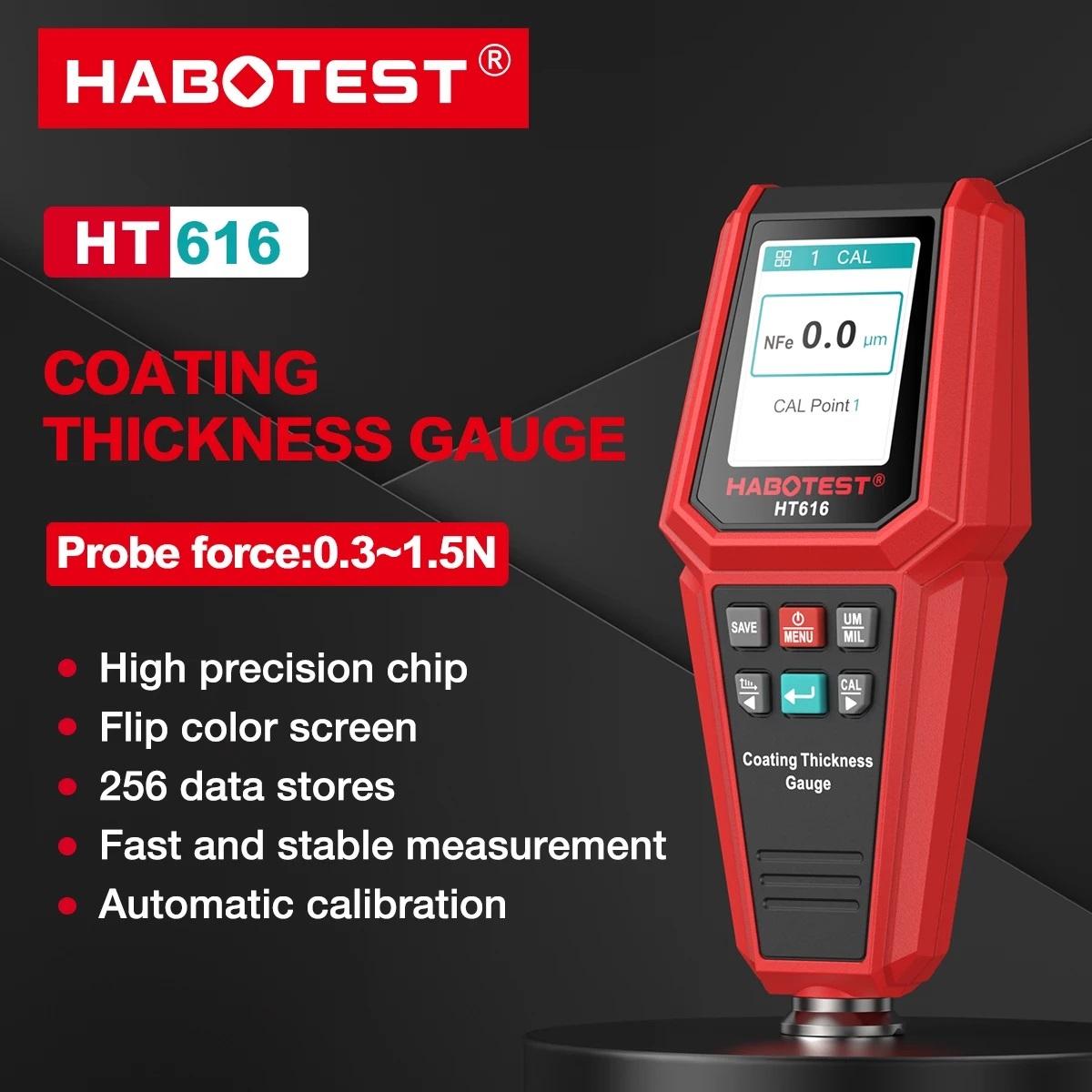

Coating Thickness Gauge

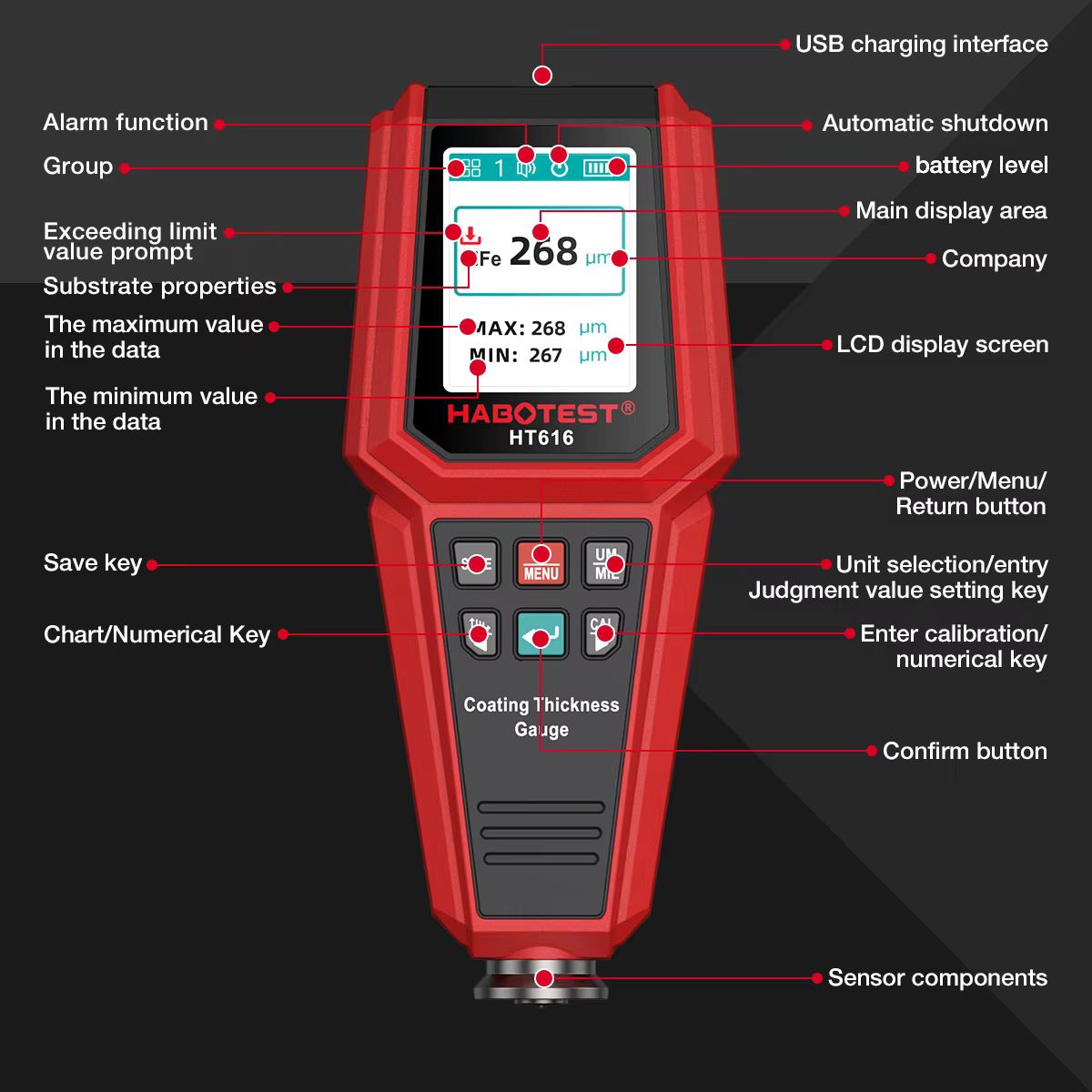

HABOTEST HT616
Original price was: ₹10,199.00.₹6,250.00Current price is: ₹6,250.00.
Availability: 2 in stock

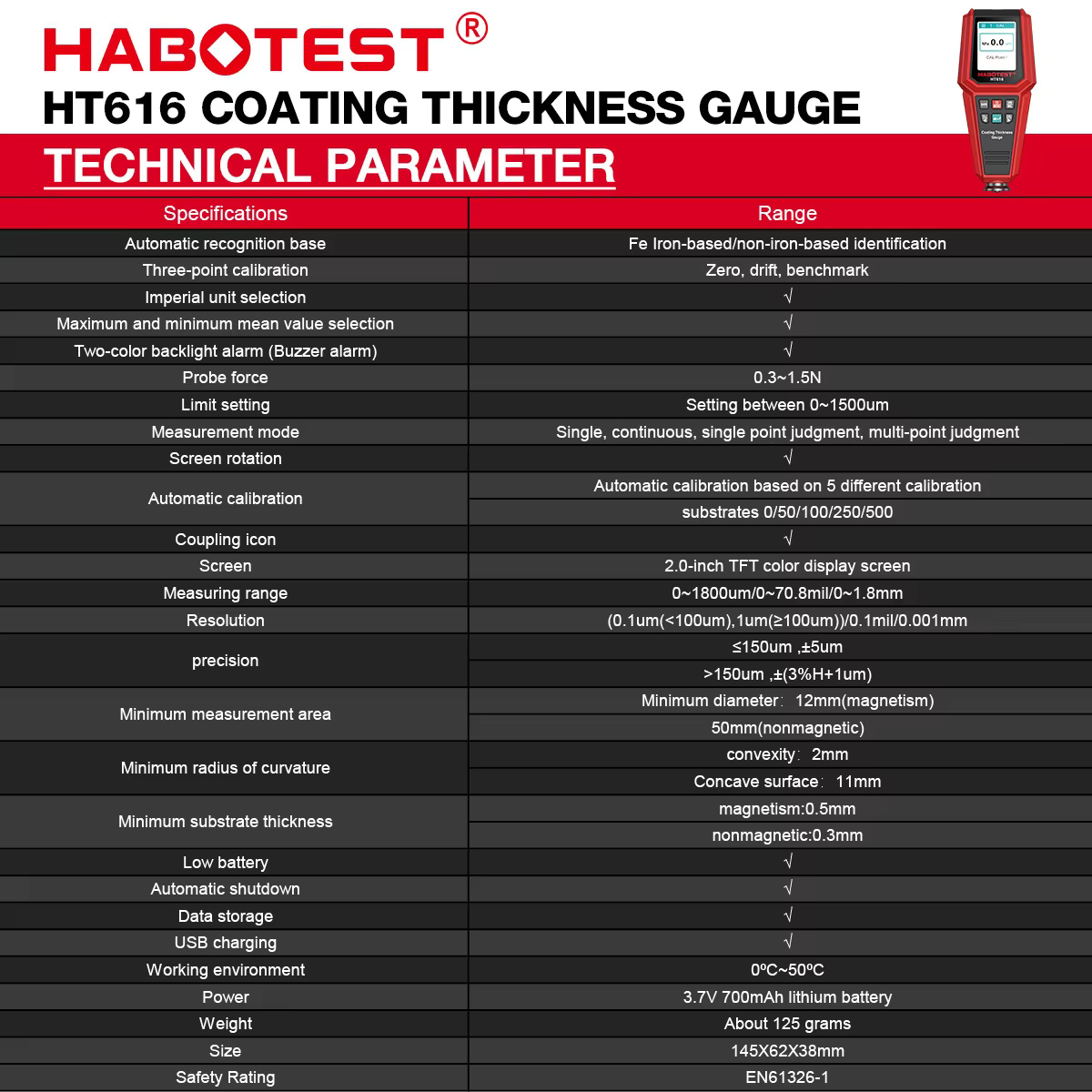

| Weight | 0.600 g |
|---|---|

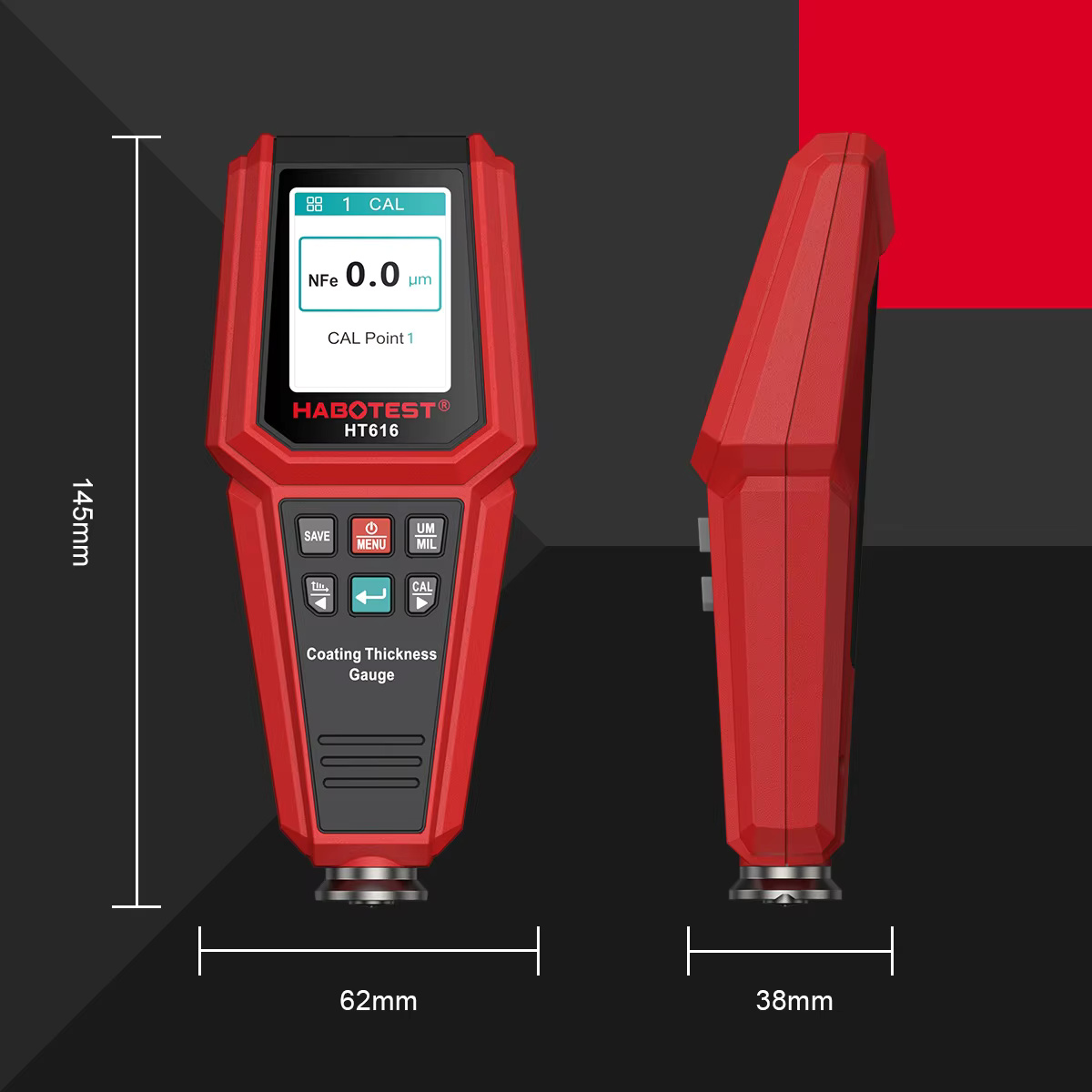

| Dimensions | 23 × 15.3 × 8 cm |

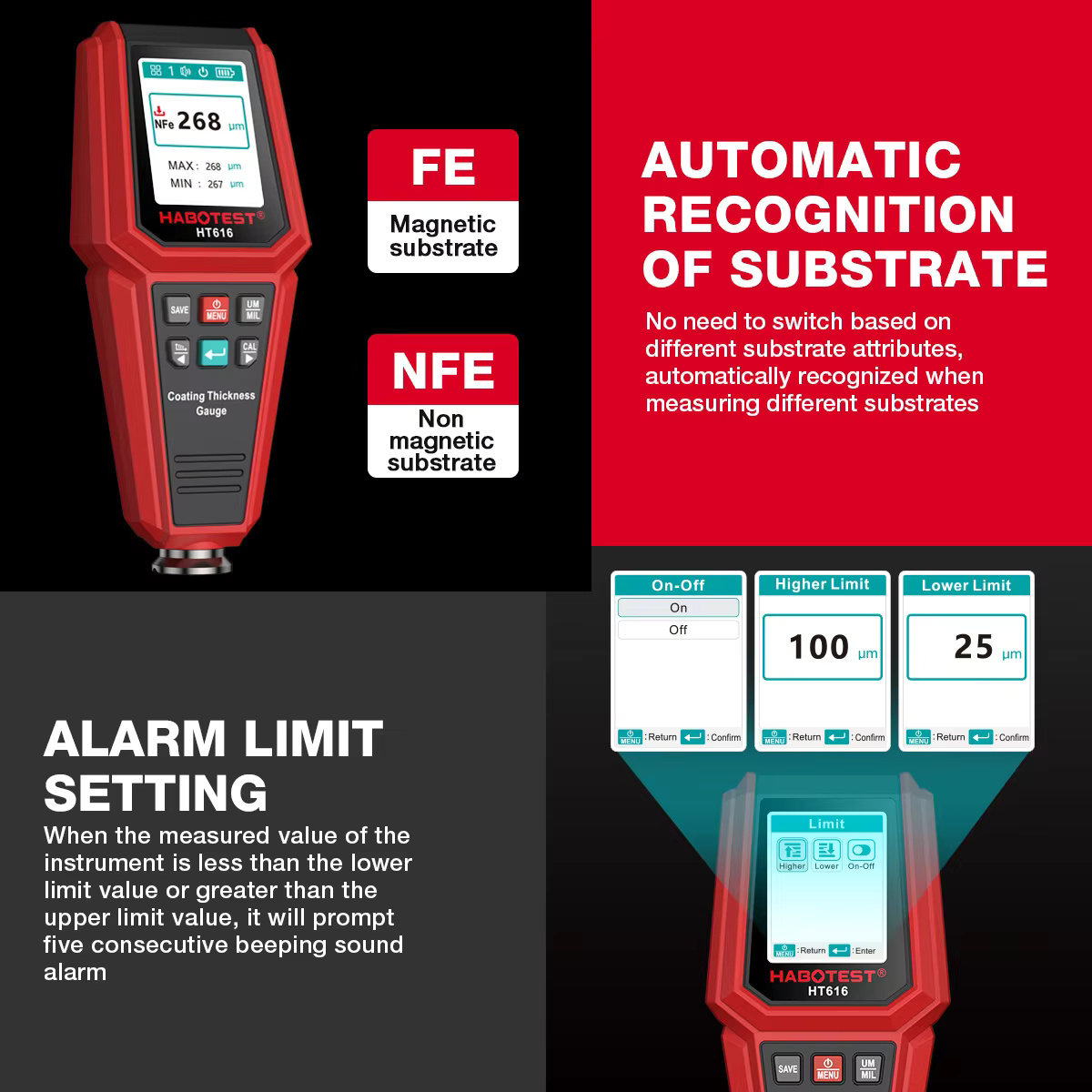

| Automatic Recognition Base | Fe iron based / non iron based identification |

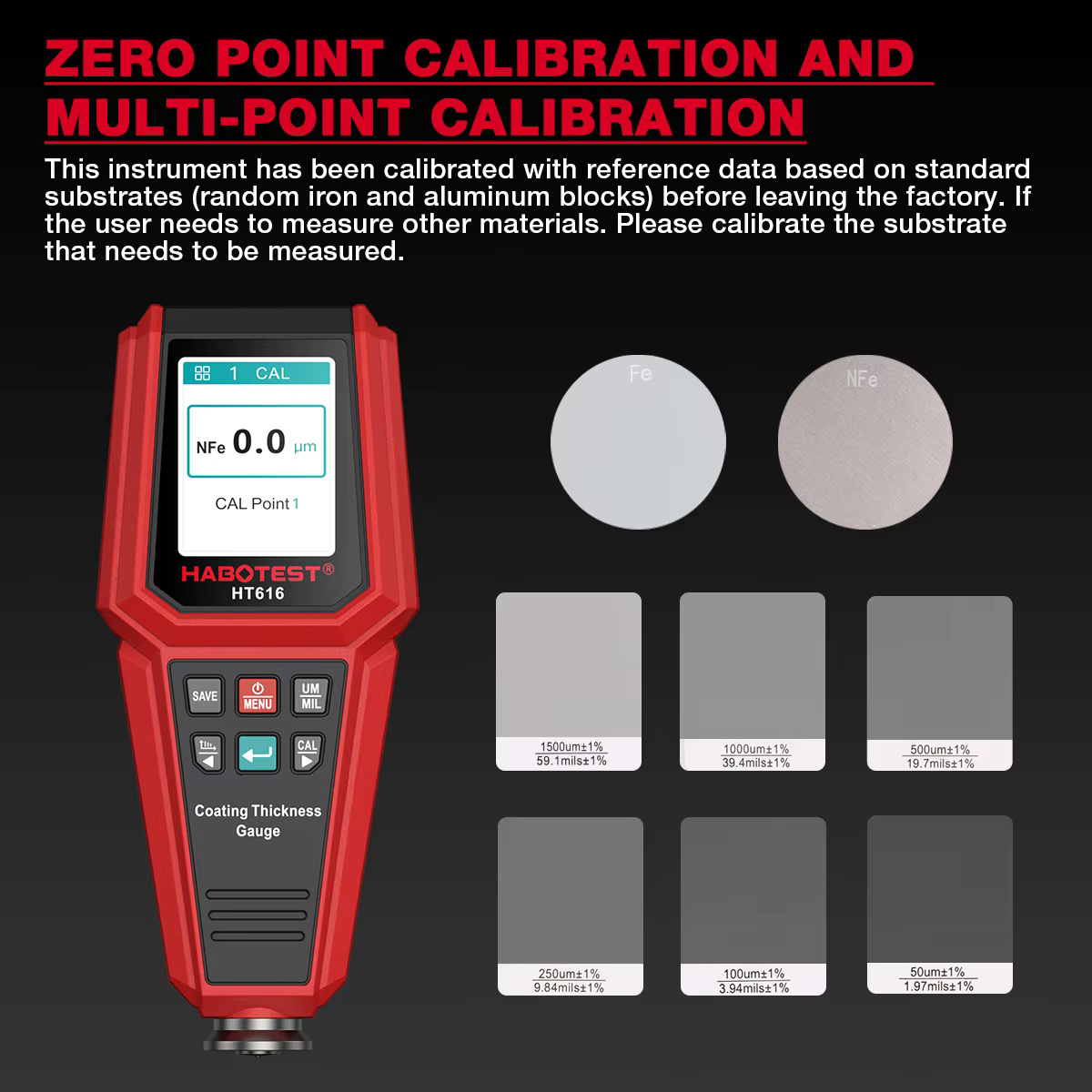

| Calibration | Zero calibration, multipoint calibration |
| Measuring Range | 0 ~ 1500 uM, accuracy ±(3%+2uM), resolution 0.1uM |
| Unit Conversion | um, mil |
| Minimum Radius of Curvature | convex surface : 1.5mm / concave surface : 25 mm |
| Minimum Measurement Area Diameter | 6 mm |
| Minimum Substrate Thickness: magnetism | 0.5mm / non magnetic : 0.3mm |

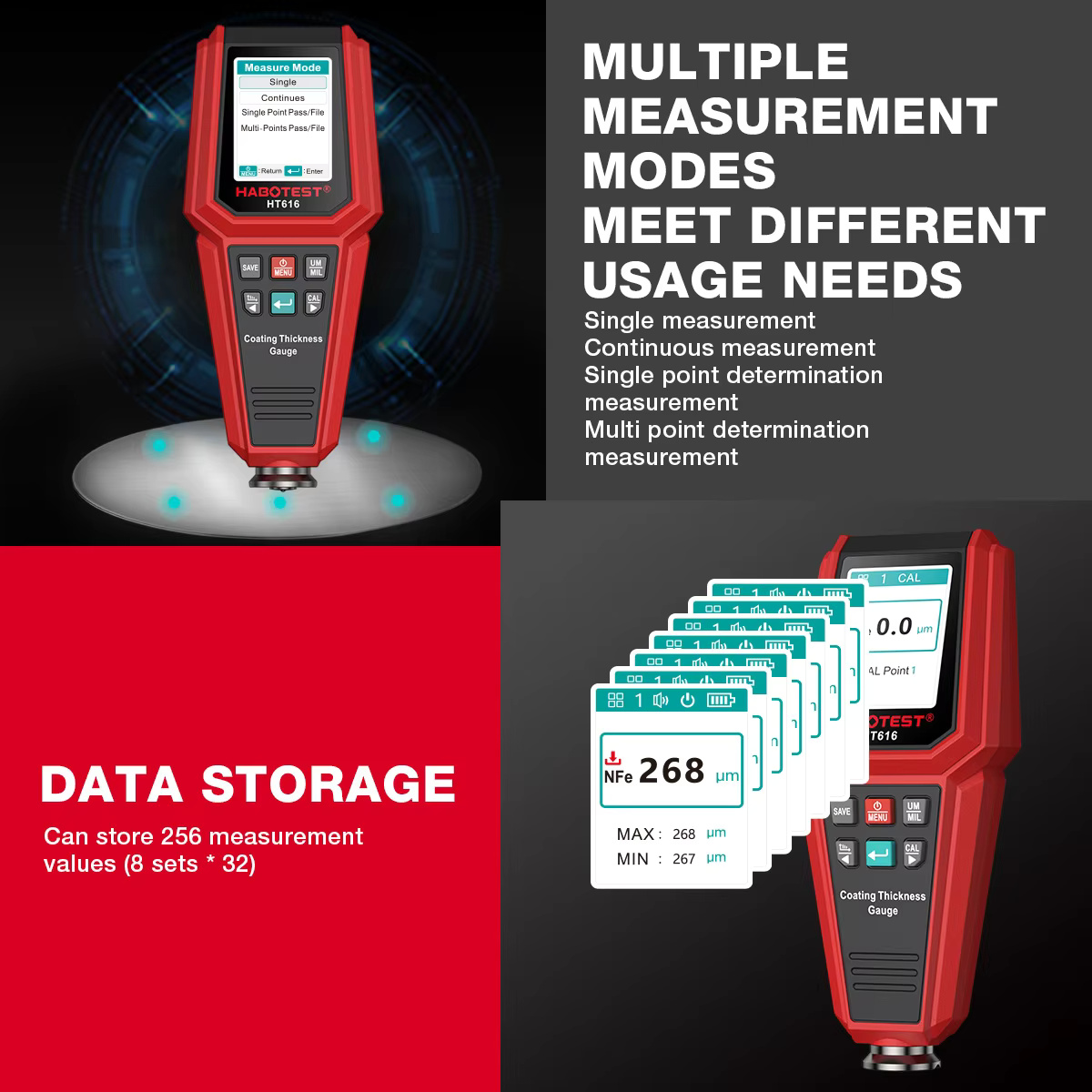

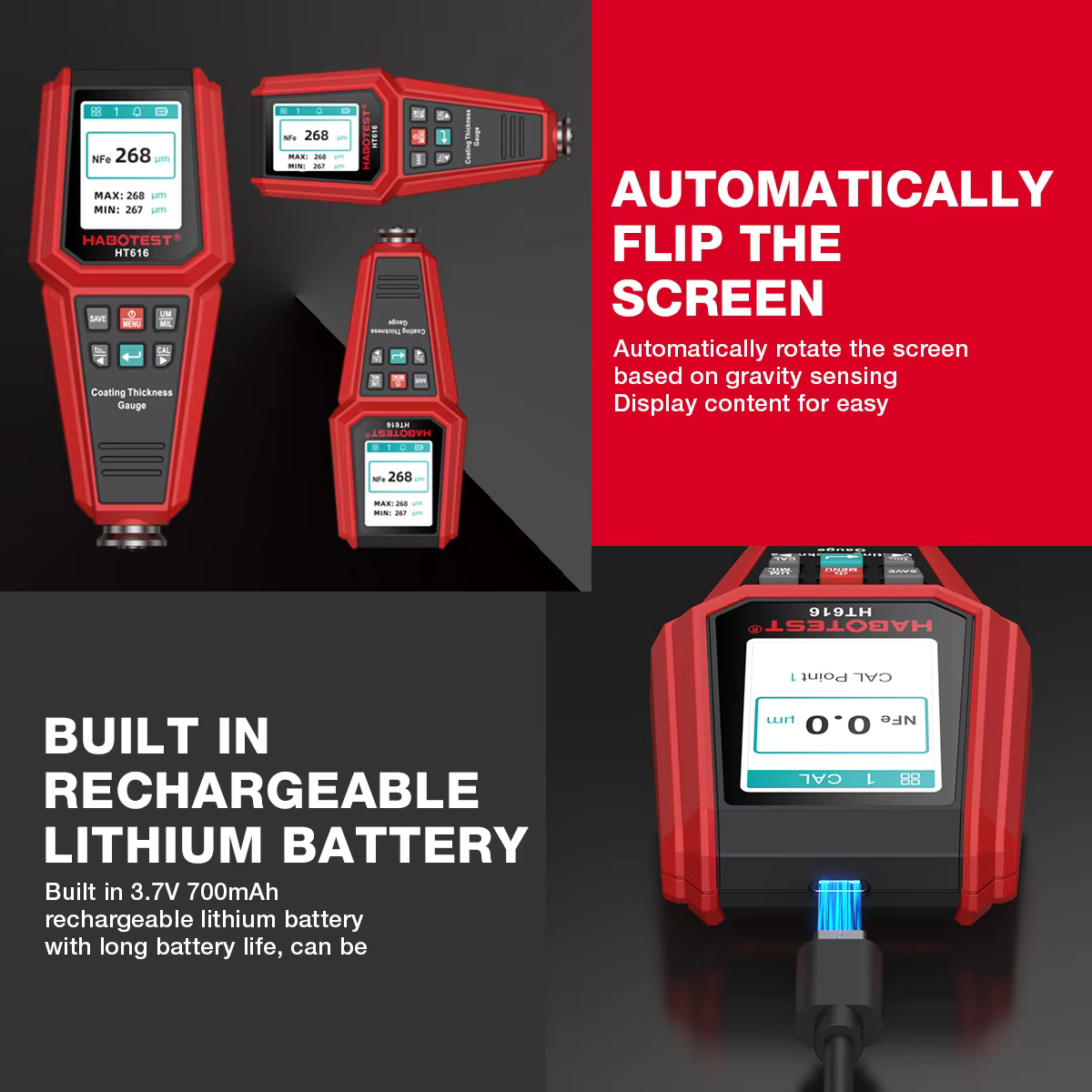

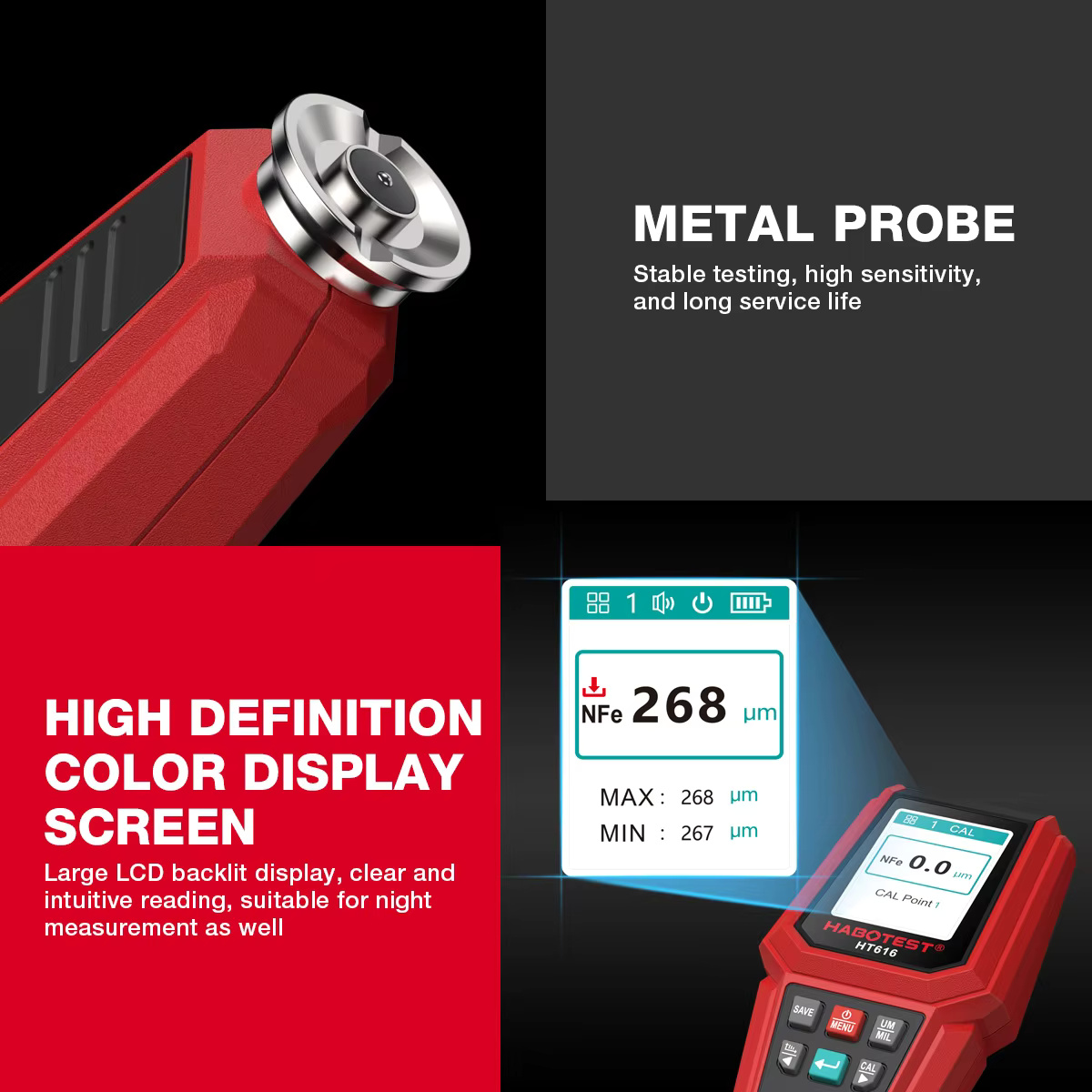

| Features | 2.0 inch TFT color display screen, Low Battery Indication, Automatic Shutdown, Data Storage, USB Charging, 3.7V 700mAh Lithium Battery, Max/Min/Average, Limit Setting Between 0 ~ 1500 uM, single, continous, single point judgement, multi point judgement Measurement Mode, Automatic calibration Based on 5 different substrates (0/50/100/250/500) |
